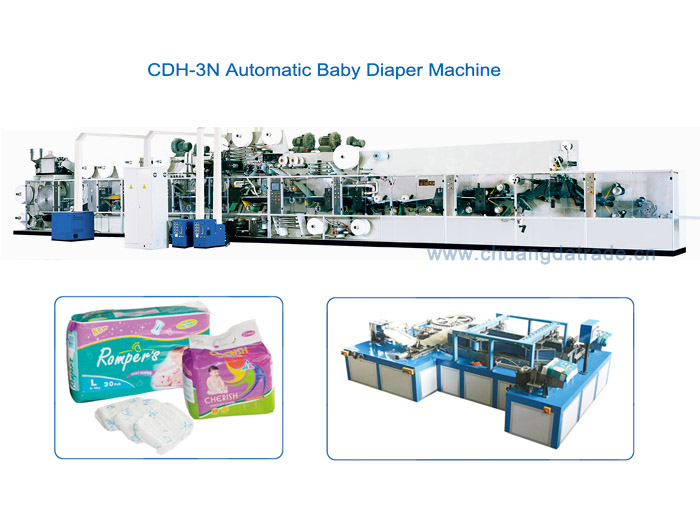

| CDH-3N Automatic Baby Diaper Machine |
 |
1.Functions and Features
The machine can produce four sizes (S.M.L.XL) baby products by changing cutting tools and gear box.
High speed teeth-like crusher can take treated and untread pulp.
Adopt PLC control system.
Safety protective door.
Semi-automatic splicing material without stopping the machine, so the working speed is guaranteed
Automatically detect and reject defective products and trim remove.
Automatically stop the machine when material is broken or used out.
Human machine interface is controlled by touching screen.
Most electric components are famous international brand.
2.Main Technical Parameter
Power supply: 380V 50HZ
Installation capacity: 90KW
Designed production speed: 350 pcs/min
Stable production speed: 250-280 pcs/min
Product dimension: a). XL (510-520)x330mm
b). L(470-480)x320mm
c). M(430-440)x320mm
d). S(380-390)x280mm (customized)
Waster Percent: <=2%(excluding caused by glue applicators failure)
Machine size: 20000x1500x2800 mm (LxWxH)
Weight: 2500kg |
|
|
|
|
